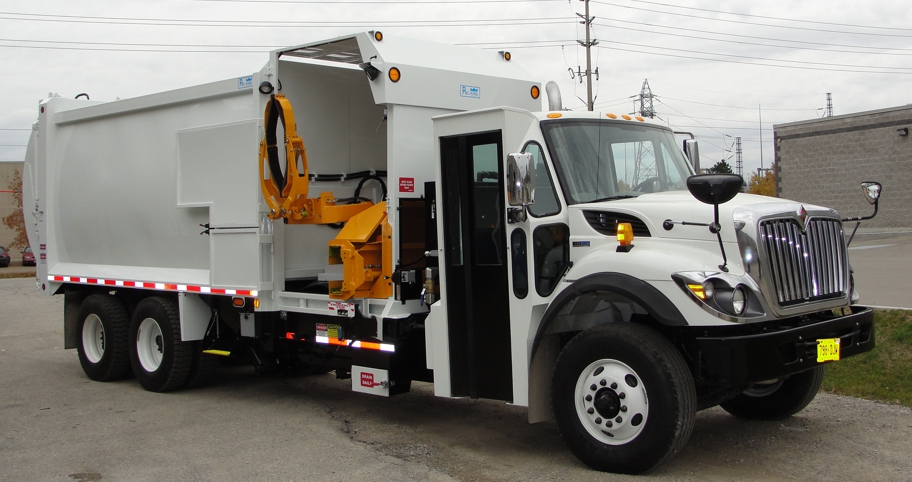

Shu-Pak Model PK FLEX 31+4 Yard DROP FRAME Side Loading
Refuse Packer
• Unitized body and hopper, 100% welded formed steel construction
• Body windows, 9" X 9" covered with expanded metal
• Roof corners of body, sloped 12" (45°) for additional tree clearance
• Crusher panel
• Crusher control, AIR/HYD located in cab

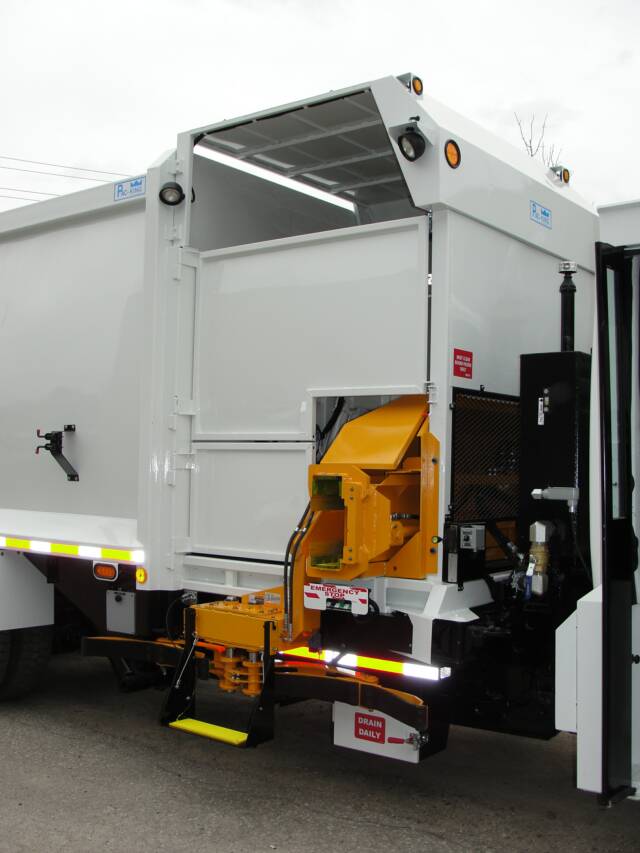

• Open top hopper enclosure with split door on curb side for manual or automated loading, packer controls
on curb side and in cab.

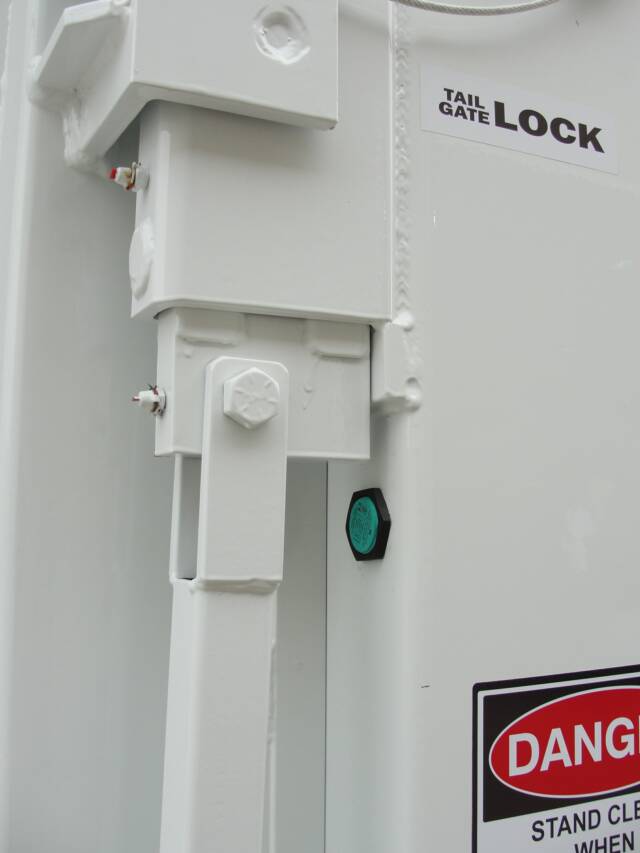

• One hinged hydraulically operated tailgate with two 2½" bore cylinders, hydraulic door
locks, manual safety locks, pins and wet seal with a combined capacity of approx. 4 yards.
• AIR/HYD control lever in cab
• Hopper floor, slope and sides, 3/8" AR400 plate
• 2 x 16 U.S. Gallon sump boxes for liquid collection
• Packing ram, 18” high, 3/8" AR400 plate complete with follower plate
• Ram guided by two guide rails in floor, AR500 steel shoes
• Transmission neutral lock out switch (deactivates engine auto excite when not in neutral)

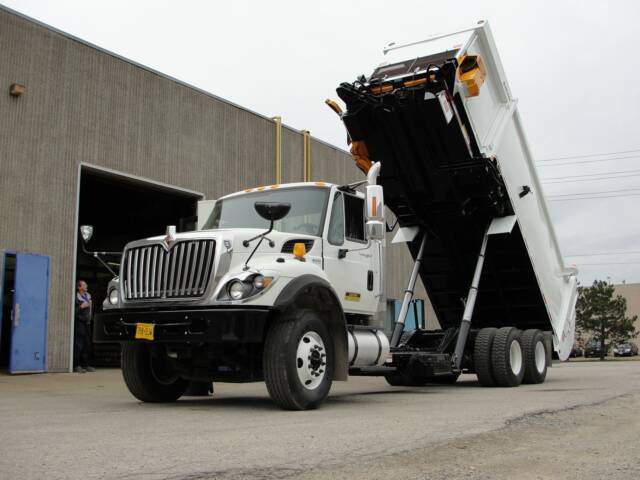

• Two 6” - three stage underbody hoist cylinders with AIR/HYD control in cab with separate valve
bank to manually lower body in the event of air loss.

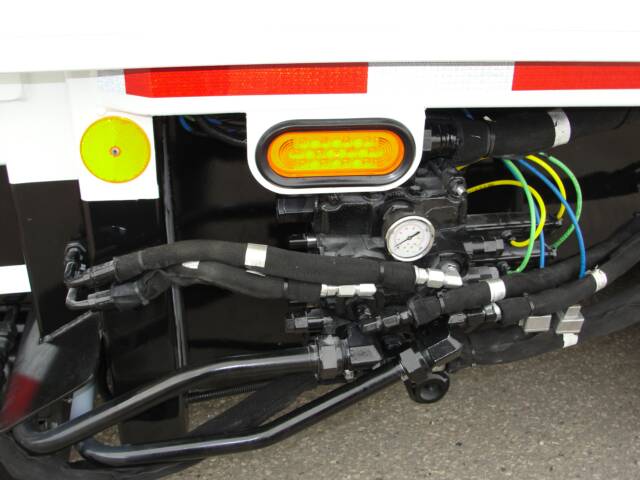

• Body mounted valve bank with air shifted spools for all functions
• Main control valve with system relief press set at 1850 PSI (gauge to monitor pressure)
• Body safety props
• Chassis drop frame modifications (provides low pitch in height at hopper)
• Transmission mounted shaft drive dual VANE pumps
• 280 Litres. (75 US) hydraulic reservoir with clean out and inspection cover
• 10 micron return line filter, 100 mesh suction trainer
• All pressure hoses SAE100R2 or equal
• LED body clearance lights, tail lights and back up lights
• Sealed wiring
• Mud guards in front of rear wheels
• Rubber mud flaps rear of rear wheels
• Body up light and warning buzzer
• Back up alarm
• Tailgate open warning light and buzzer
• Auto-neutral work brake
• Tailgate mounted D.O.T. rear bumper

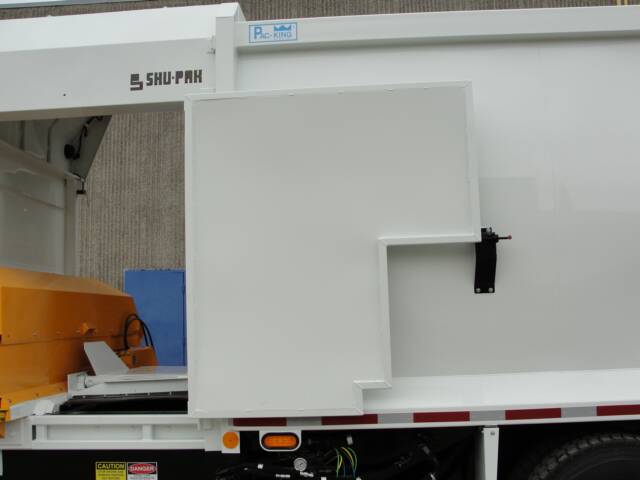

• Special width hopper clean out doors to accommodate shovel

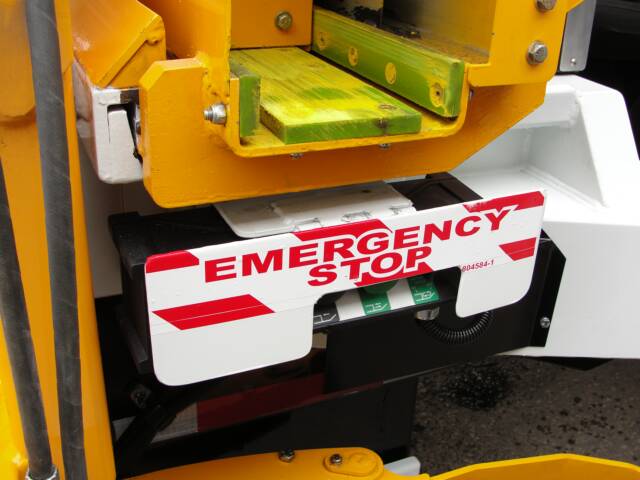

• Panic bar over packer stop buttons (full width of Hopper Opening)

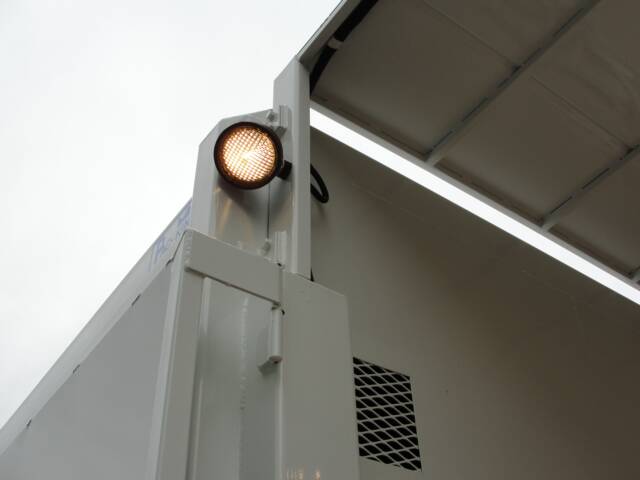

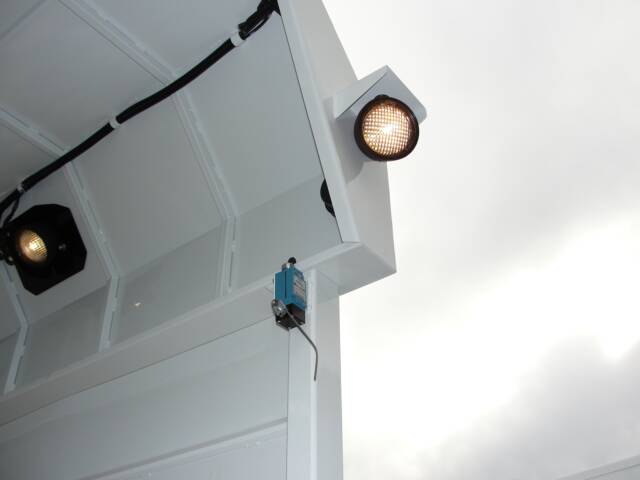

• Right side work lamp with dash mounted switch

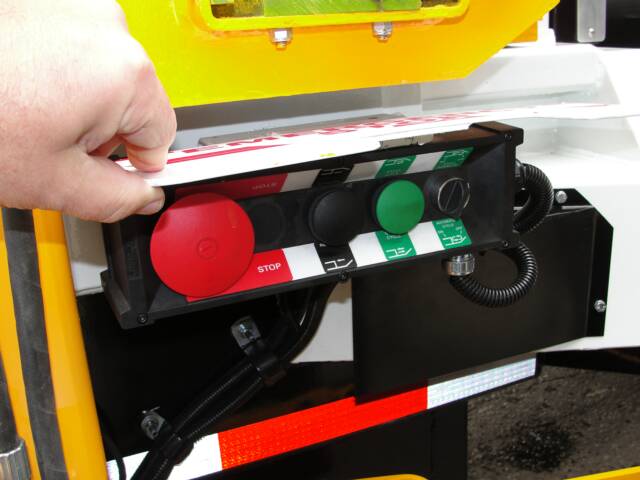

• Weatherproof packer control box located in cab
• Proximity sensors, H.D. industrial type
• Packer electronically controlled with integral diagnostic system
• Selector switch for one, three or eight cycles of ram
• Motivator switch located in cab to manually excite engine
• Right -hand cab conversion and control package
• Zonedefence quad camera system. Monitoring hopper, arm, left lane and reverse

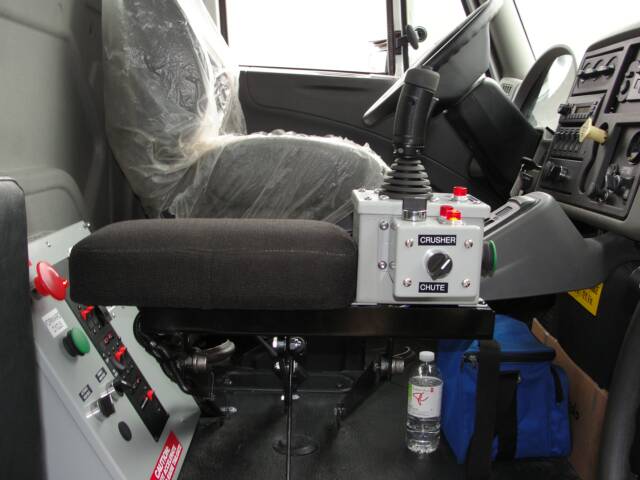

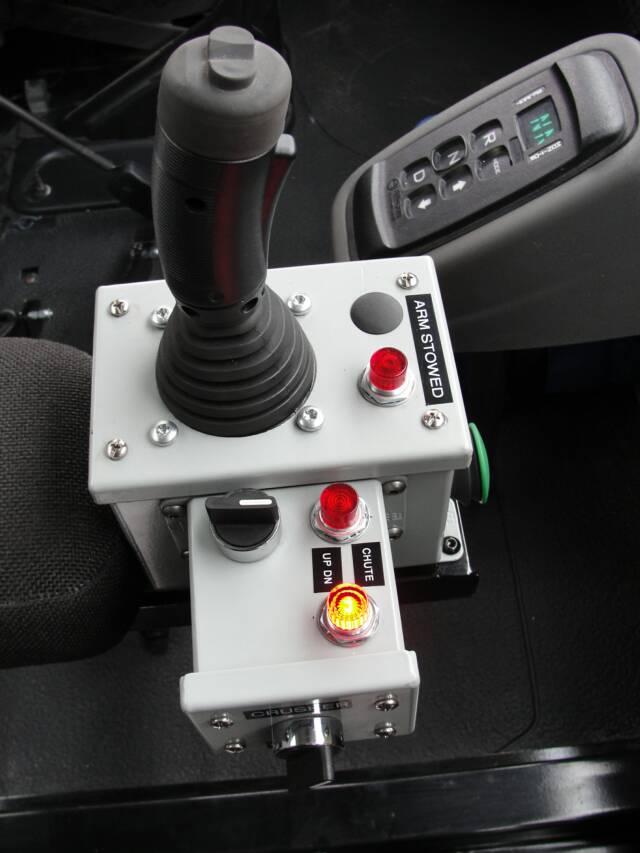

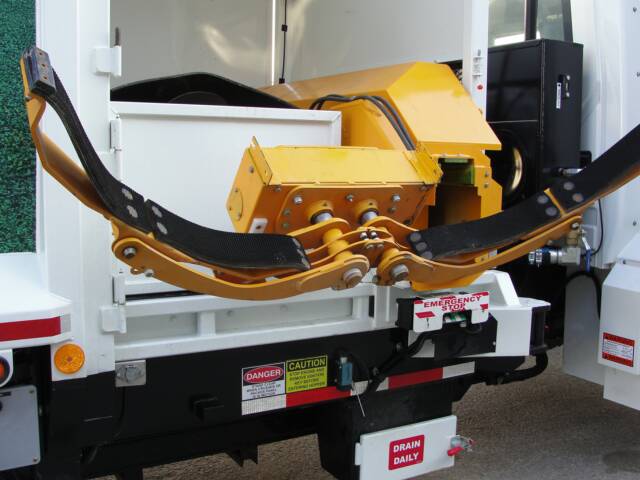

• Automated arm with in cab proportional joystick control
GENERAL ARM SPECS:
Reach 0 to 84 inches
optional reach 0 to 134
Lift capacity 500 lbs
Cycle time 8 to 20 sec
Carts comp. 32 to 95 gal,
80 liters to 360 liters
Chassis 2012 International Work Star 7400 SBA 6X4
International MaxxForce 9, 300 HP, 800 lb-ft Torque @ 1200 RPM
ALLISON 3500-RDS-P 4th Generation Controls; Wide Ratio, 5-Speed, With Overdrive
Front Axle: Wide Track, I-Beam Type, 16,000-lb Capacity
Rear Tandem: Single Reduction 40,000-lb Capacity With Driver Controlled Main Locking
Differential in Rear-Rear Axle and 200 Wheel Ends Gear Ratio: 5.29
Bendix Anti-Lock Brake System
AM/FM Stereo With Weather-band, Clock, Includes Multiple Dual Cone Speakers
Air Conditioning, Cruise Control, Air Ride Drivers Seat, Intermittent Wipers Etc.
For more information or to view this unit please call: Toll Free 800-809-0166
CLICK ON THE PHOTOS TO ENLARGE
176 McGovern Dr. RR32
Cambridge, Ontario
Canada N3H 4R7
Ph: 519-653-2472 Fax: 519-653-2719
Shown finished in white.
Click on the file above to download a printable specs sheet.
HYDRAULIC CYLINDERS:
Extension 72" stroke 2" int dia.
Dumping 10" stroke 3" int dia.
Clamp: 7" stroke 2" int dia.
WORKING PRESSURE PSI
ext and retract 2000/2500
Dump 2000/2500
Clamp 1500/2000.
